TopVent® Curtain

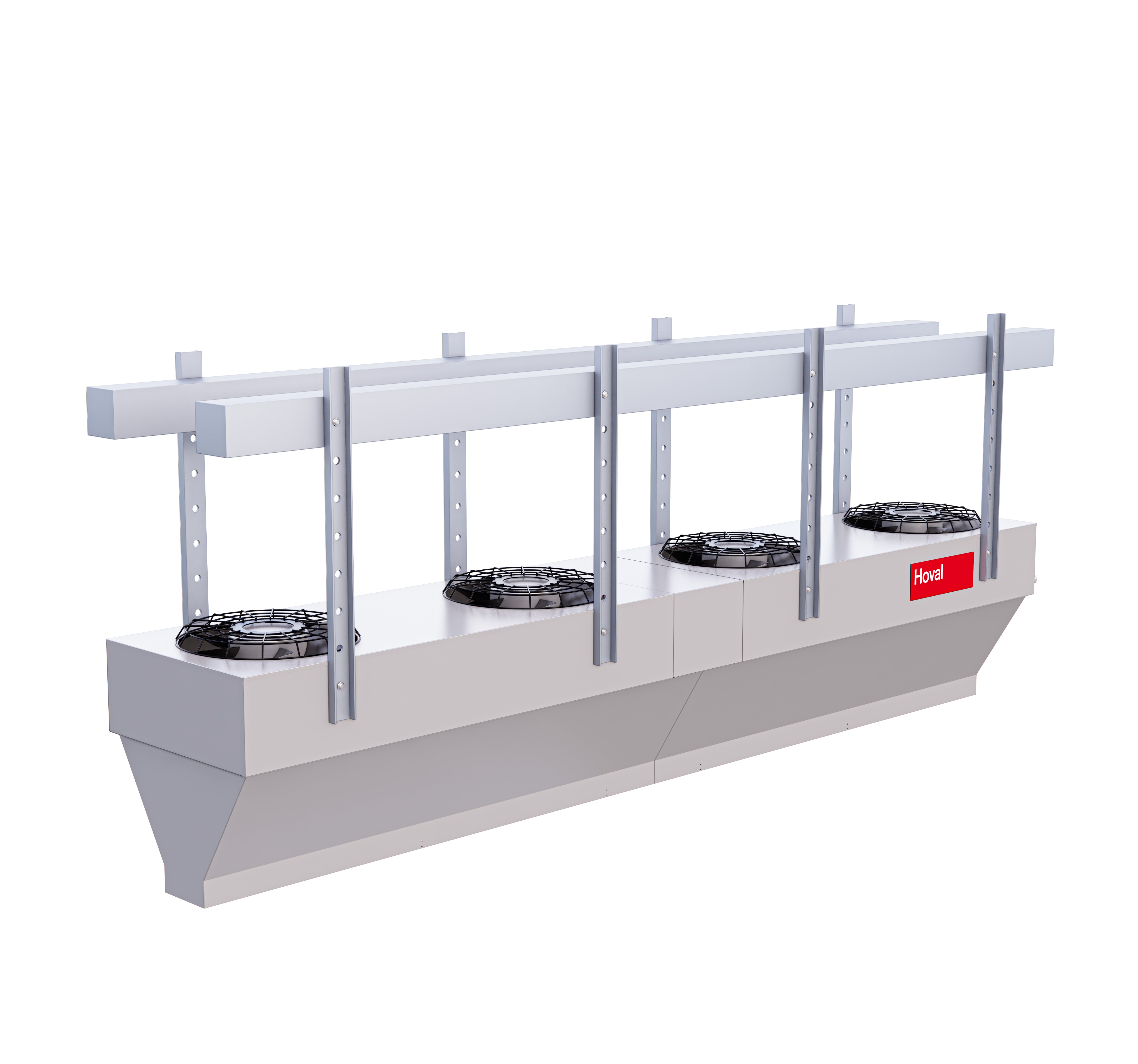

TopVent Curtain is a circulating heating system equipped with air curtain nozzles.

The TopVent Curtain air curtain machine minimizes energy wastage when doors are opened. It mitigates the impact of the external environment on indoor temperature, prevents the infiltration of cold air, and enlarges the effective heating area within the room. Multiple length combinations cater to various door widths, while its internal special design enables the equipment to produce higher air volume.

Description:

The TopVent Curtain is a circulating heating equipment with an air curtain nozzle. The TopVent Curtain air curtain reduces energy waste when doors are opened. The air curtain weakens the impact of the outside environment on indoor temperature, prevents cold air from infiltrating, and enlarges the effective heating area within the room. Its various length combinations adapt to various door widths, and its internal special structure allows the equipment to have a higher airflow rate.

Functions:

Heating
Air Circulation
Tapered Nozzle

Advantages：

Maximum flexibility for all types of halls and hall usages with its modular and scalable system building block design
Cost-effective supplement supply and extract air handling systems if there is a temporary increase in demand for heat or cooling capacity
Efficient air distribution with the integrated Air-Injector – reduced heat loss and no pressure drops in ducts
With various coils and accessories, customized solutions can be provided.
Multiple units can be interconnected for centralized control and management.

Technical data	CUR
Air flow rate m³/h	1000-22000
Heat output kW	10-140
Cooling capacity (total) kW	——
Operating distance m x m	Main gate 6 meters
Weight kg	21-212
